bar end induction High Frequency Induction Heating forging machine
1. Features and advantages of high frequency induction heating equipment:
(1) There is no need for overall heating, the deformation of the workpiece is small, and the power consumption is small.
(2) No pollution.
(3) The heating speed is fast, and the surface of the workpiece is lightly oxidized and decarburized.
(4) The surface hardened layer can be adjusted as required, which is easy to control.
(5) The heating equipment can be installed on the machining production line, which is easy to realize mechanization and automation, easy to manage, can reduce transportation, save manpower, and improve production efficiency.
(6) The structure of the hardened layer is fine, and the hardness, strength and toughness of the hardened layer are high.
(7) After surface quenching, the surface layer of the workpiece has a larger compressive internal stress, and the fatigue fracture resistance of the workpiece is higher.
2. Technical Parameters of LSW-120 IGBT induction heating machine:
| Model | LSW-120 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 120kw |
| Oscillation frequency | 18-35KHZ |
| Duty cycle | 100% |
| Cooling water flow | 45L/Min,0.2MPa |
| Weight | 230kg |
| Dimension (L*W*H ) | 600*480*1360mm / 800*500*580mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating,quenching etc |

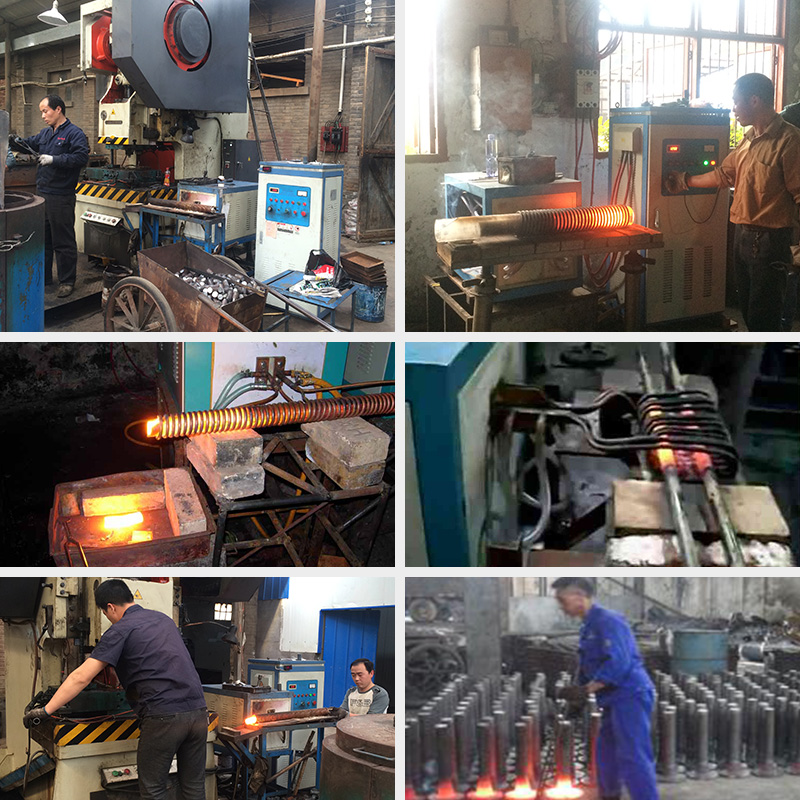

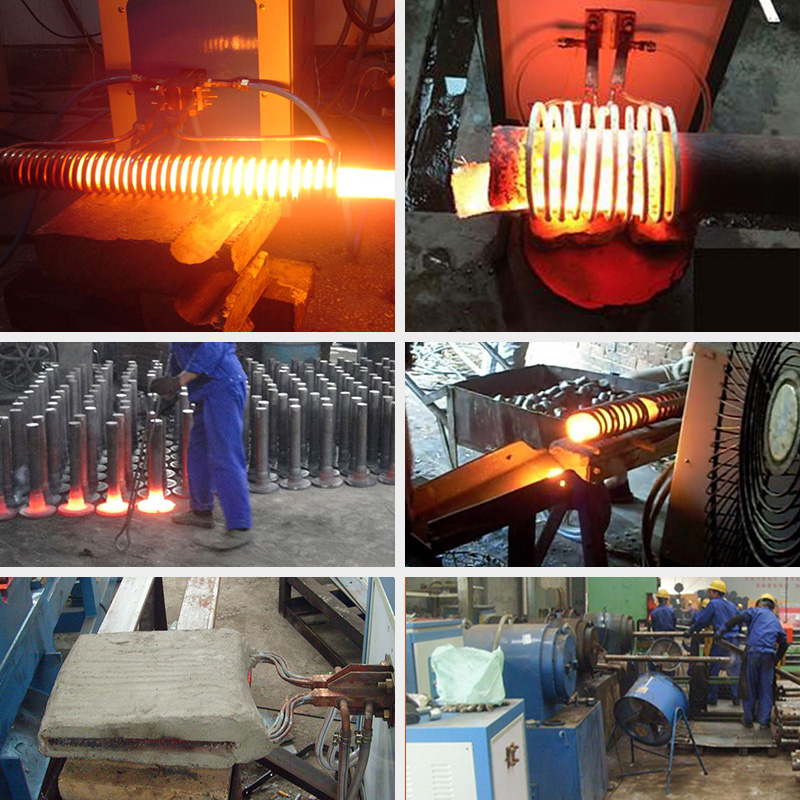

3. Applications of IGBT induction heating machine:
diathermy (forging)
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
4. Main Features of IGBT induction heating machine:
